MonoFlat FAD-5

Lateral Opening System.

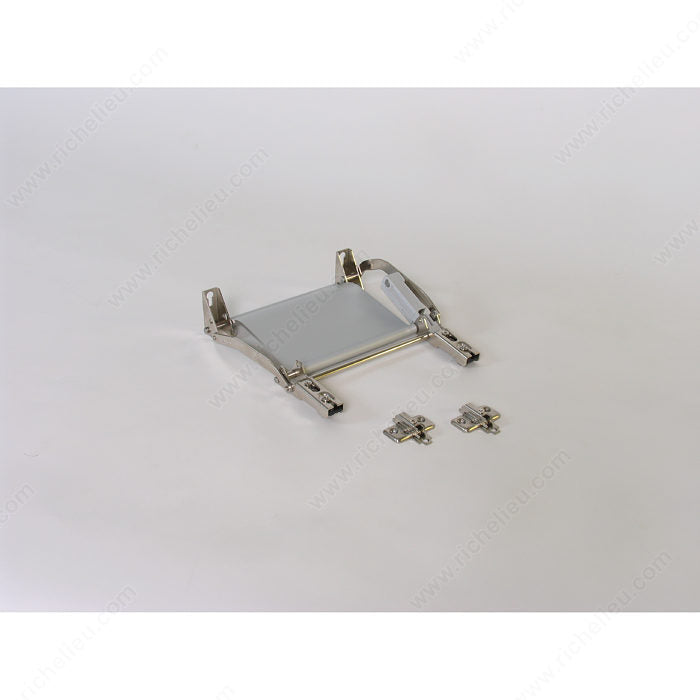

Lateral swing mechanism for lightweight doors.

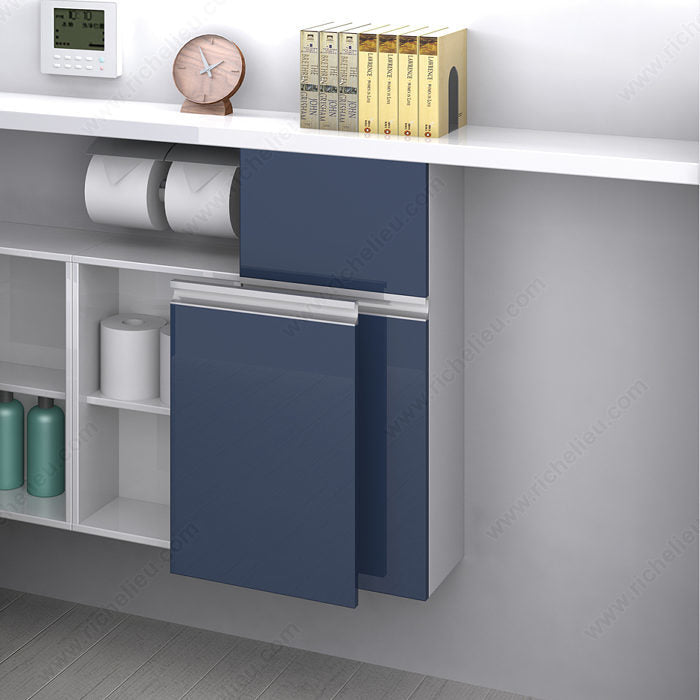

Allows doors to swing out laterally in a small radius, ideal for tight front space application.

ADVANTAGES AND BENEFITS

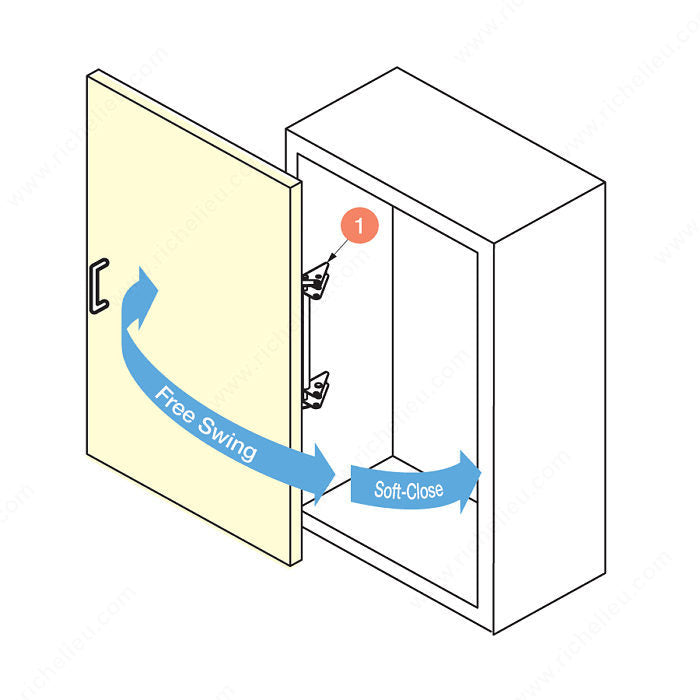

 - Free-swing and soft-close
 - 3 ways Adjustable

TECHNICAL SPECIFICATIONS

• Application: Cabinet
• Door Movement: Lateral
• Door Position: Full Overlay
• Load Capacity: 11 lb
• Door Thickness: 19/32 to 25/32 in
• Door Height: 10 1/4 to 25 5/8 in
• Door Width: 10 5/8 to 13 3/4 in
• Number of Doors: 1 door
• Soft-Close Type: One-Way Operation
