HIDDI - LED luminaire for drawer and vertical opening systems

With proximity sensor

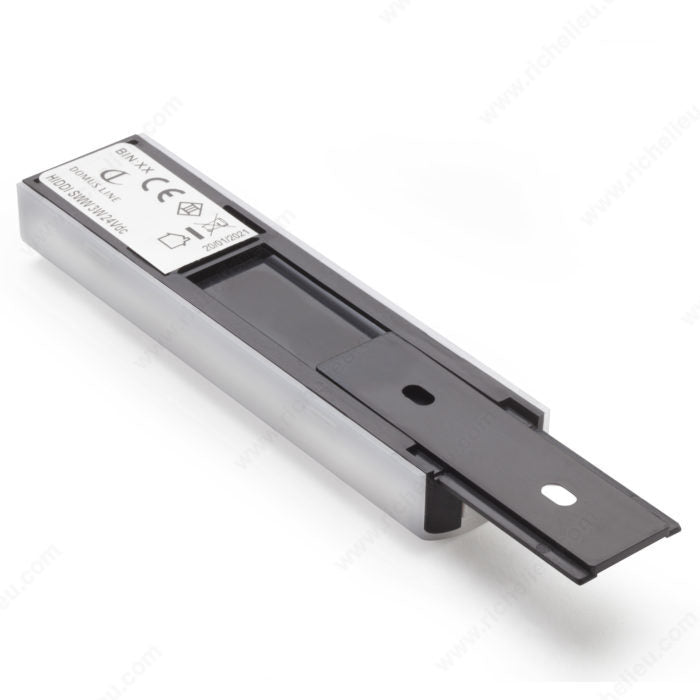

HIDDI is a luminaire with symmetrical light projection, recommended for use in cabinets with drawers or vertical opening system. The luminaire, only 15 mm thick, in a neutral finish, incorporates an infrared sensor that switches it on and off automatically when the door or drawer is opened and closed. HIDDI can be installed on the sides of the furniture frame, using a support on which the light fixture slides to hide the fixing screws.

TECHNICAL SPECIFICATIONS

• Finish: White
• Material: Thermoplastic, Polycarbonate
• Luminaire: Rigid Linear
• Operation: Direct
• Luminous Efficiency: 85 lm/W
• Luminous Flux: 255 Lumen
• Length: 3 27/32 in
• Width: 31/32 in
• Height: 19/32 in
• Power Cable Length: 78 3/4 in
• Tension (V): 24 V
• Compatibility: Micro 24
• Sensor Type: Infrared
• CRI: 80
• Lighting Type: LED
• Power Cable: Single
• Watts/Foot: 3 W

ADVANTAGES AND BENEFITS
- Small and versatile
- For lighting drawers and cupboards
- Integrated infrared sensor
- Complete light diffuser
- Detachable power cord
- Adhesive cable sleeve included
- Easy to install

REQUIRED PRODUCTS

 - Power Supplies 24 V d.c.

 - 24 V Non-Dimmable Hardwire Power Supply
